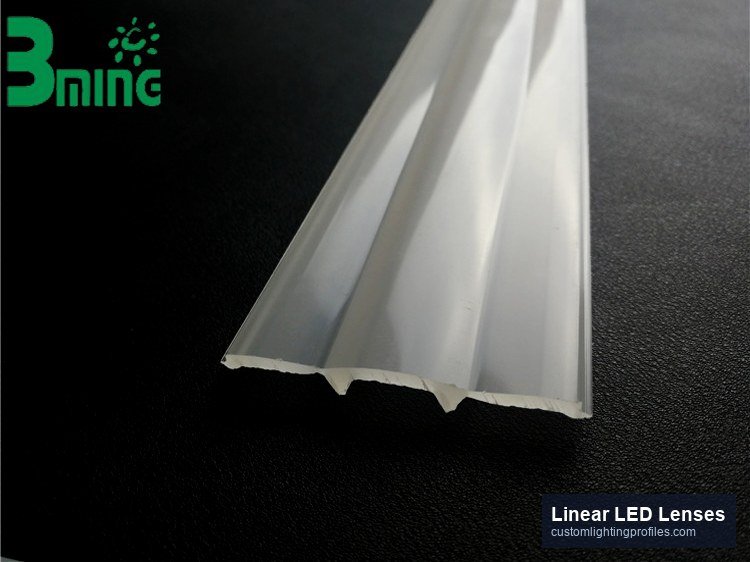

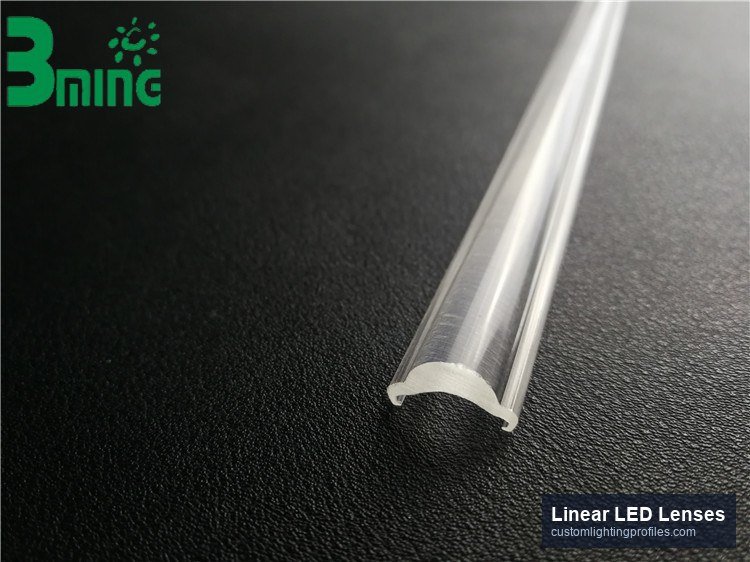

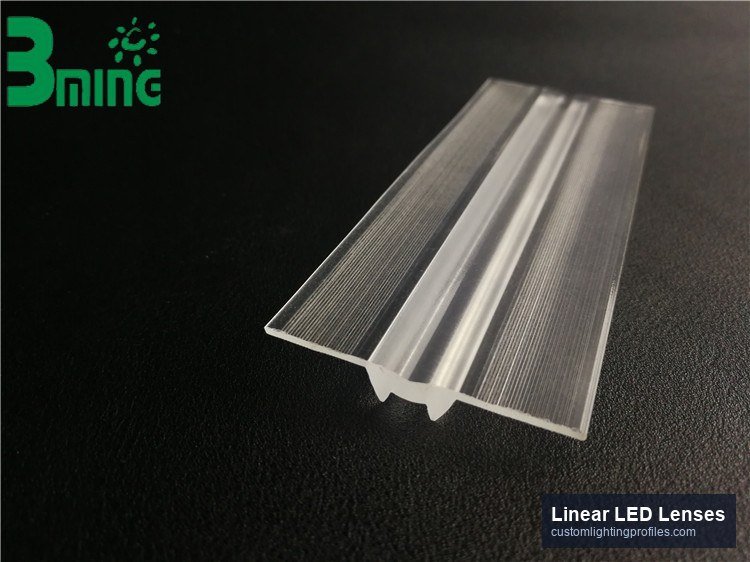

Linear LED Lenses for Precise Beam Control
Linear LED lenses shape the light emitted by an LED strip into a controlled beam — narrow, wide, or asymmetric. Our 60-degree linear lenses are a proven optic for fixture manufacturers who need repeatable beam angles without secondary reflectors.
Beam Options

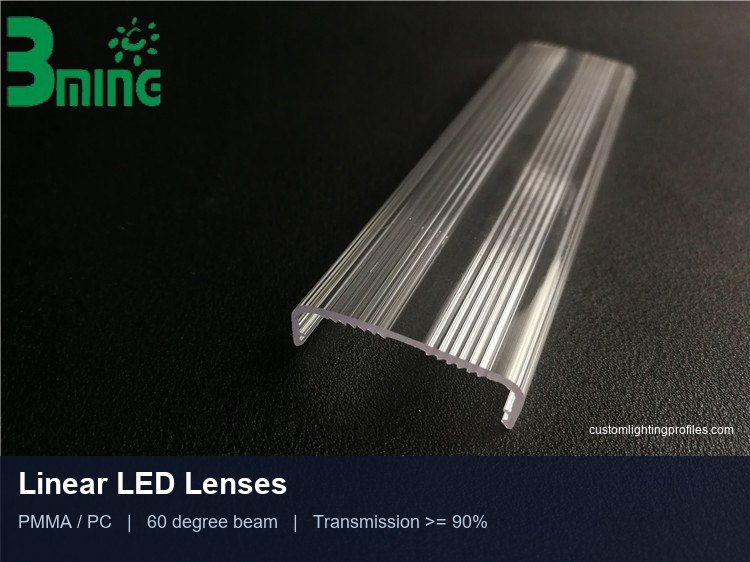

- 60° lens — a balanced beam for general linear and accent lighting.
- Narrower / wider angles — custom optics for wall washing, grazing, or high-bay distribution.
Material Options
PMMA (acrylic) is the standard for optical clarity and transmission; PC is used where higher heat or impact resistance is required. Both are molded or extruded to tight optical tolerance.
Typical Specifications
| Parameter | Typical Range |
|---|---|
| Beam angle | 60° standard, custom available |
| Length | Cut-to-length or standard bars |
| Light transmission | ≥ 90% (PMMA) |
| Material | PMMA or PC, UV-stable grades |
Applications
Linear strip lighting, shelf and display lighting, wall washers, and architectural accent lighting.
Why Work With Us
- Optical-grade material and consistent beam control
- Custom lens profiles and rapid sampling
- Scalable extrusion for large production runs
Tell us your target beam angle and strip pitch and we will recommend the right lens and quote tooling and unit cost.
