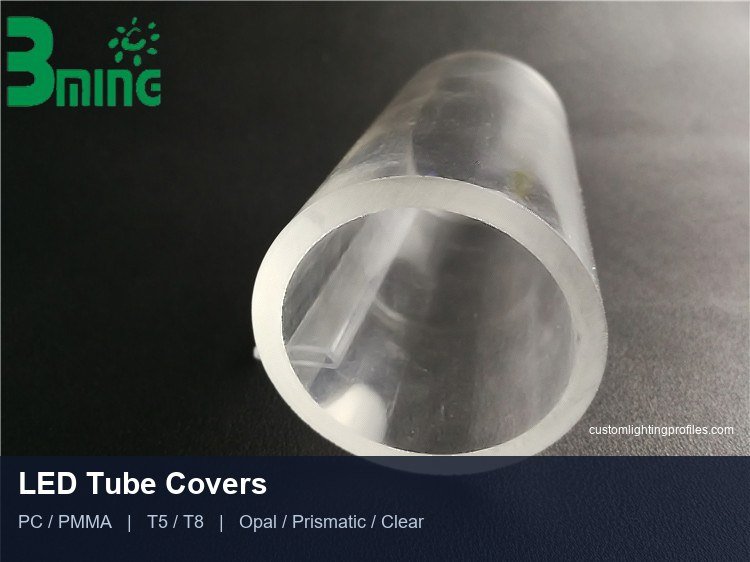

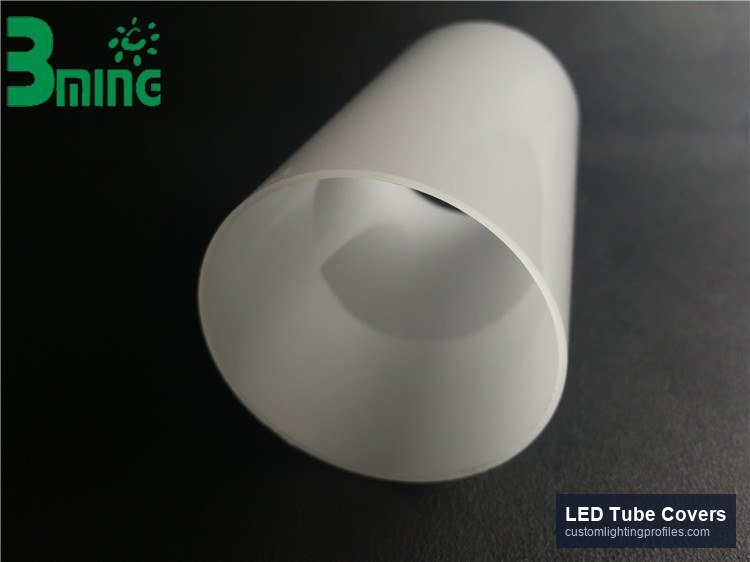

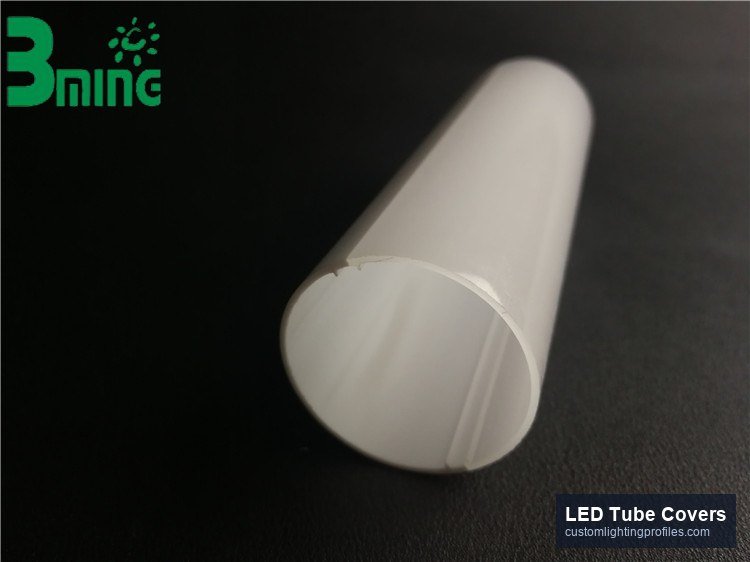

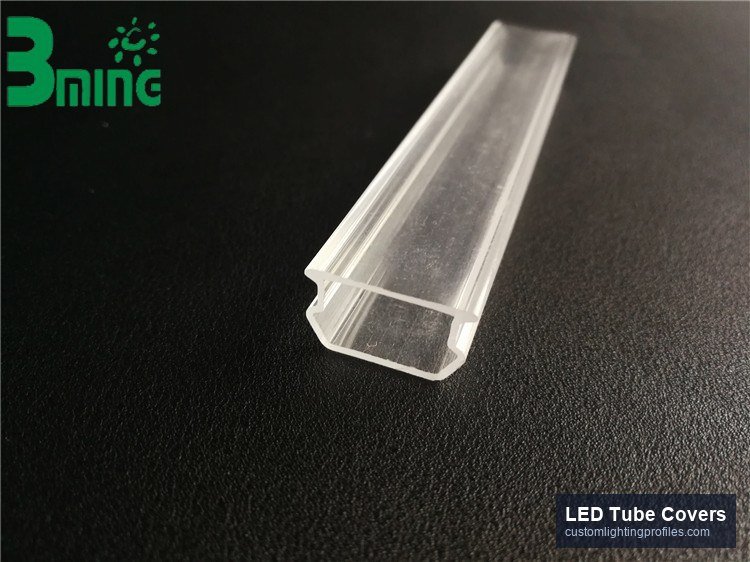

LED Tube Covers for T5 / T8 Retrofit and Linear Tubes
LED tube covers are the clear or diffusing sleeve that encloses an LED strip inside a T5 or T8 tube. We extrude them in PC and PMMA so retrofit and linear-tube manufacturers can control beam uniformity, glare, and mechanical protection in one profile.
Optics Options
- Opal / milky — smooth, point-free light for general indoor lighting.
- Prismatic — wide, uniform distribution with reduced glare.
- Clear — maximum output for high-efficiency or protective covers.
Material Options
PC for impact resistance and heat tolerance; PMMA for the highest light transmission and optical clarity. Both are available UV-stabilized to resist yellowing over the fixture lifetime.
Typical Specifications
| Parameter | Typical Range |
|---|---|
| Tube diameter | T5 (16 mm) / T8 (26 mm) or custom |
| Length | Cut-to-length, or 0.6 m / 0.9 m / 1.2 m / 1.5 m bars |
| Light transmission | Opal 65–80%, prismatic 85–90%, clear ≥ 88% |
| Flame rating | UL94 V-2 / V-0 (PC grades) |
Applications
LED retrofit tubes, tri-proof tubes, task lighting, and industrial linear fixtures.
Why Work With Us
- Precision diameter tolerance for reliable end-cap fit
- Consistent optical and color control across batches
- Custom profiles and co-extrusion available
Send your tube diameter, length, and required finish and we will quote tooling and unit cost.
