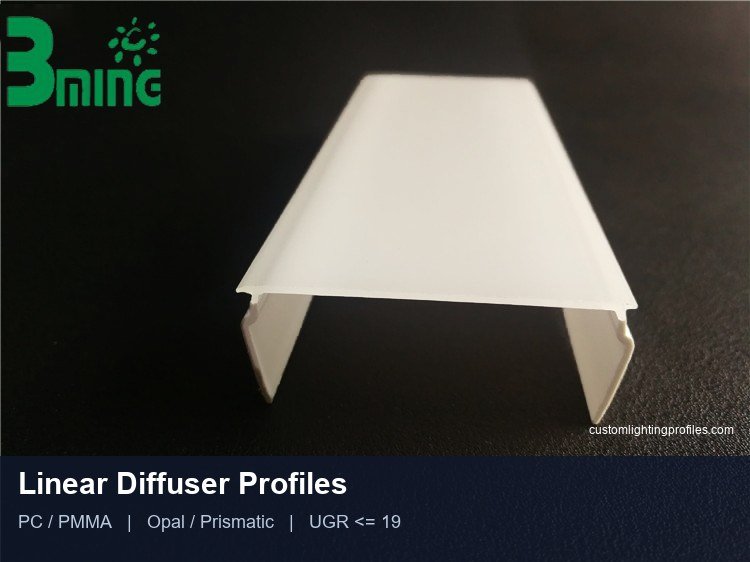

Linear Diffuser Profiles for LED Linear Lighting
Linear diffuser profiles sit between the LED strip and the room, turning a row of bright point sources into a smooth, continuous line of light. We extrude them in PC and PMMA for fixture manufacturers who need consistent light output and tight glare control in linear luminaires.
Optics: Opal, Prismatic, or Clear

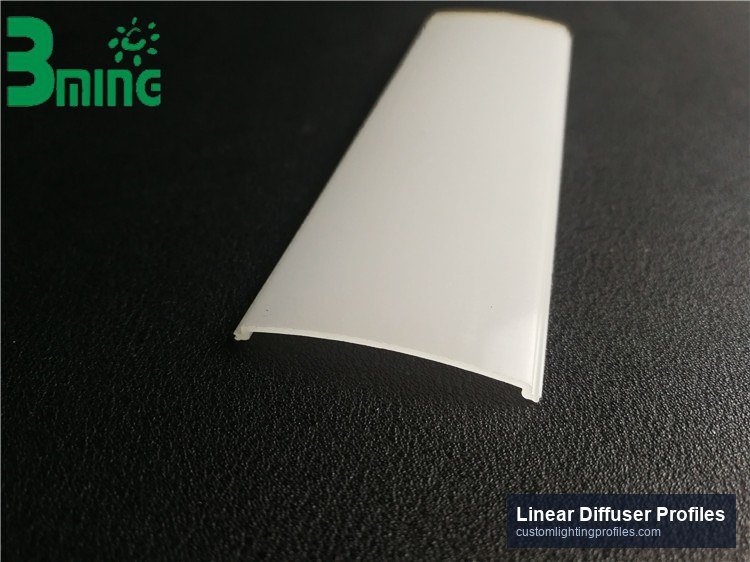

- Opal (milky) diffuser — soft, evenly blended light; the default choice for offices and retail where visual comfort matters.

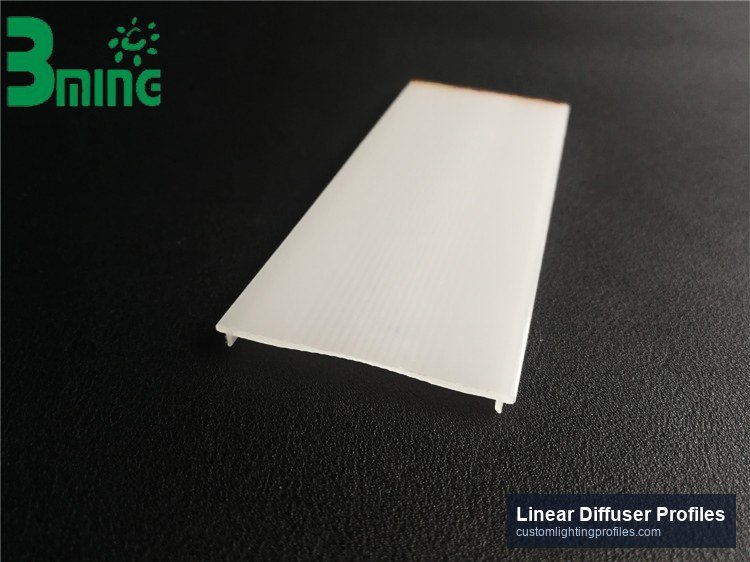

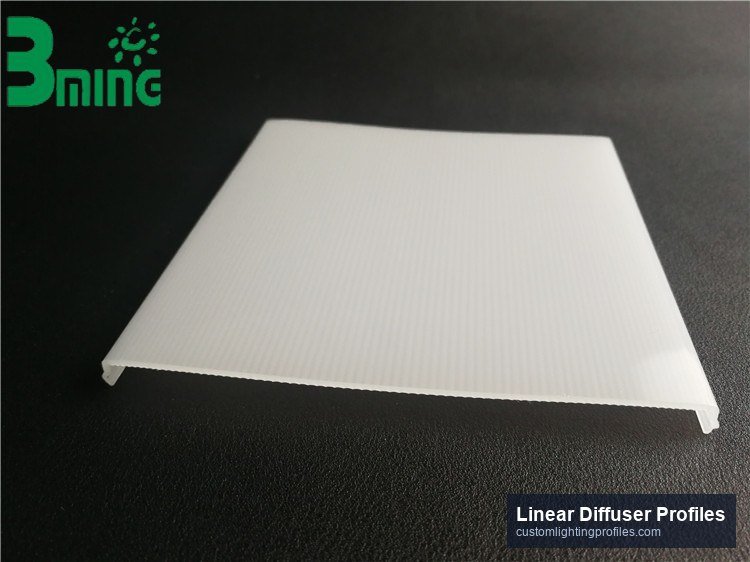

- Prismatic diffuser — micro-prisms spread light across a wider angle while hiding the LED points, improving UGR performance.
- Clear / frosted cover — maximum light output for high-bay and task lighting.
Material Options
PC (polycarbonate) offers impact strength and heat resistance to 120–130°C, ideal for continuous-run fixtures. PMMA (acrylic) delivers up to 92% light transmission at a lower cost for indoor applications. Both are available UV-stabilized and QUV-tested for long-term anti-yellowing.
Typical Specifications
| Parameter | Typical Range |
|---|---|
| Profile width | 15–120 mm (custom) |
| Length | Cut-to-length, or 2.0 m / 2.4 m / 3.0 m bars |
| Light transmission | Opal 65–80%, prismatic 85–90%, clear ≥ 88% |
| Flame rating | UL94 V-2 / V-0 (PC grades) |
| Glare control | UGR ≤ 19 achievable with prismatic optics |
Applications
Suspended and surface linear luminaires, cove lighting, wall washers, and office task lighting.
Why Work With Us
- In-house tooling with rapid sample turnaround
- Consistent batch-to-batch optical and color control
- From drawing to mass production in about 6 weeks
Send your drawing or target UGR and we will recommend the right optic and quote tooling and unit cost.
